SHD70 Series

Super heavy duty Loading Ramps

A flatbed loading ramp with a yellow railing and black frame, designated for transporting heavy loads, with a maximum load capacity of 70,000 pounds or 32,000 kilograms..

The SHD70 Series Super Heavy Duty Portable Yard Ramps are custom built to suit your extra heavy-duty loading applications. These loading ramps are available in load capacities ranging from 70,000 pounds to 160,000 pounds with a 2 to 1 load factor of safety allowing you to tackle most jobs.

Request a Quote

Applications Include:

  • Equipment Rental Companies

  • Military bases

  • Building Supply Centers

  • Scrap Yards & Recycling Plants

  • Commercial Operations

  • Heavy Millwrighting Operations

  • Lumber Yards

  • Rail Yards

  • Heavy Industries

  • Most other loading and unloading applications

Flatbed truck carrying Adapt-A-Ramp Loading Ramp, with a yellow 'WIDE LOAD' sign at the rear, parked on grass with a cloudy sky overhead.

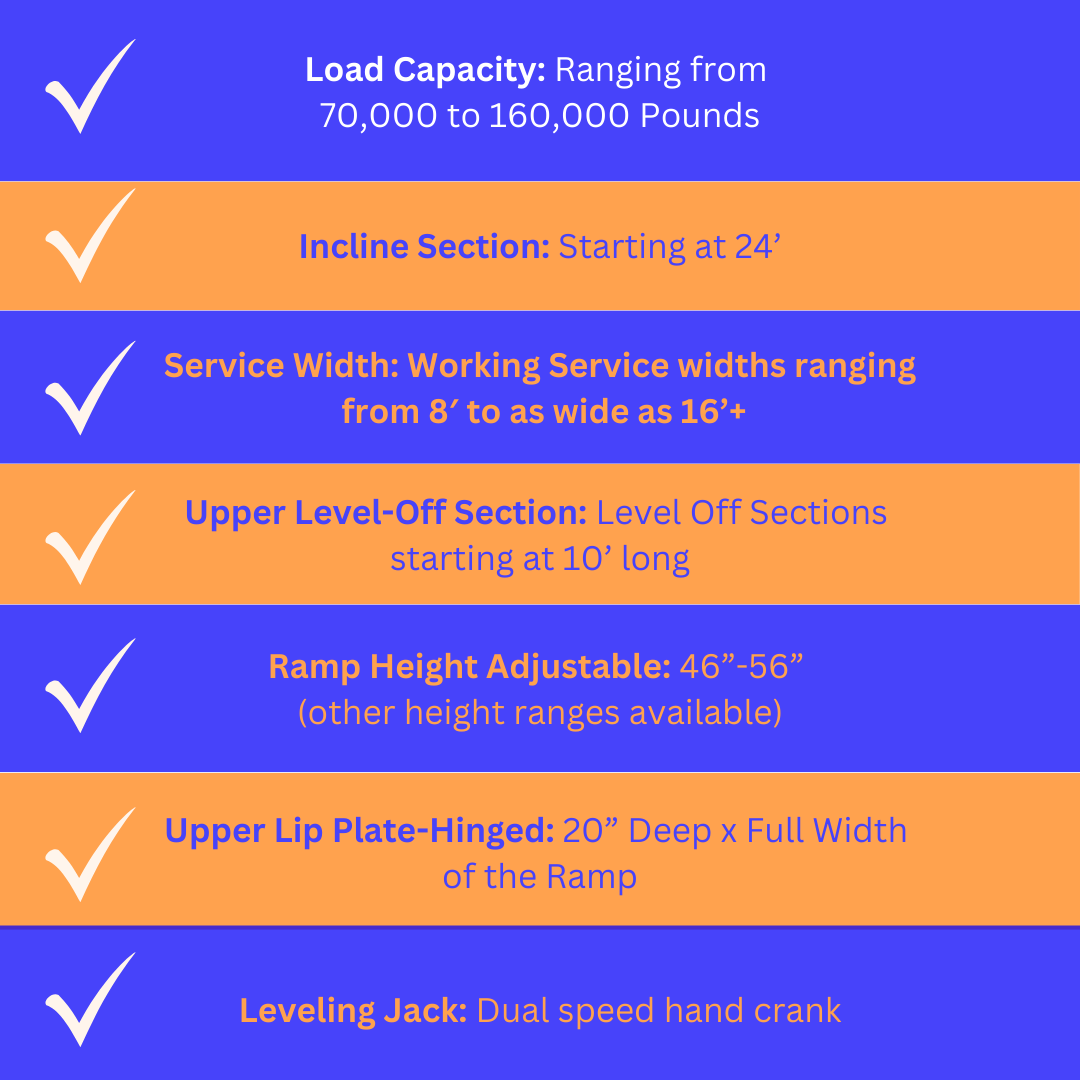

shd70 Series Loading Ramp Specifications:

The SHD Series Portable Yard Ramps are available in several sizes and configurations offering widths available from the standard 96” to as wide as 16 feet for special applications.

A colorful infographic listing specifications for a piece of gym equipment. It highlights load capacity, incline section starting at 24 degrees, work service widths ranging from 8 to 16 plus, upper level off sections starting at 10 feet long, adjustable ramp height from 46 to 56 inches, upper lip plate-hinged 20 inches deep and full width, and a dual-speed leveling jack.

shd70 Series Loading Ramp Design Features:

The SHD70 Series Portable Loading Ramps are equipped with several exclusive design features that will improve productivity and operational safety.

Green forklift on a ramp marked with maximum load capacity

Load Capacity

Our SHD series loading ramps have a load capacity of 70,000+ pounds and are designed to a 2 to 1 load factor of safety. Similar to all Adapt-A-Ramps, the load rating is based on 4 point loads similar to a vehicles foot print as opposed to distributing the load over the full area of the ramp.

This realistic rating assures that any point on this ramp will support the full load capacity.

tail plate safety feature on durable loading ramps from Adapt-A-Ramp and Another Way Equipment Depot

Hinged Tail Plate

The hinged tail plate is 60” long and is located at the lower end of the ramp. This feature helps to improve ramp stability and creates a safer transition on and off the ramp.

Lip Plate feature

4 Piece Hinged Lip Plate

The lip plate is attached with a full width seamless hinge and over laps onto the bed of the trailer allowing for a safe transition from the ramp to the truck. Ramps with a width of 102” or wider come equipped with Adapt-A-Ramps four piece hinged lip plate design. This design will enable you the flexibility of accessing flatbed trailers and dry van trailers and containers.

close up of ramp product

Side Guard Rails

The SHD70 portable loading ramps are equipped with heavy duty side guard rails to help avoid driving off the side of the ramp. The standard guard rails are 8” high and are available in other height ranges.

Adapt-A-Ramp and Another Way Equipment Depot loading dock ramps include several features that make offloading and loading more efficient for workers and consumers.

Upper Level-Off Section

The SHD70 mobile yard ramp features a 10 foot long upper level-off section that allows for your product to safely exit the truck prior to its descent on the ramp. This prevents possible damage caused by the freight hitting the top of the trailer.
